Volcano Watch: Scientists search for the right “keys” to Mauna Loa

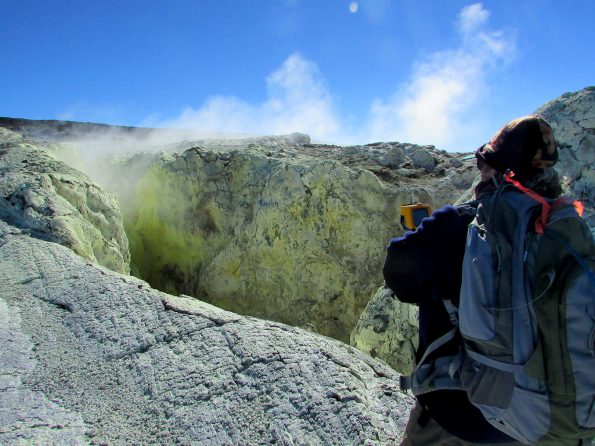

A USGS Hawaiian Volcano Observatory chemist conducts thermal imaging measurements as part of a geochemical survey on Mauna Loa's upper Southwest Rift Zone in March 2016. Areas like the one shown here can indicate where gases are escaping from magma at depth. USGS photo.

A USGS Hawaiian Volcano Observatory chemist conducts thermal imaging measurements as part of a geochemical survey on Mauna Loa’s upper Southwest Rift Zone in March 2016. Areas like the one shown here can indicate where gases are escaping from magma at depth. USGS photo.

(Volcano Watch is a weekly article written by scientists at the U.S. Geological Survey’s Hawaiian Volcano Observatory.)

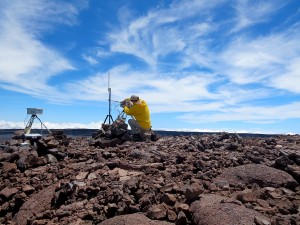

An HVO geologist performs a routine check of the thermal camera and webcam at the summit of Mauna Loa. Photo taken Saturday, September 19, 2015 courtesy of USGS/HVO

An HVO geologist performs a routine check of the thermal camera and webcam at the summit of Mauna Loa. Photo taken Saturday, September 19, 2015 courtesy of USGS/HVO

In September 2015, the USGS Hawaiian Volcano Observatory (HVO) raised the Volcano Alert Level for Mauna Loa from “normal” to “advisory” because of increased activity beneath the mountain’s summit caldera and upper Southwest Rift Zone (SWRZ). Importantly, the “advisory” level does not indicate that an eruption is imminent or certain. Rather, it means that one or more monitoring data streams are recording activity significantly above background levels. At the same time that earthquake rates increased, sensitive Global Positioning Satellite (GPS) instruments and satellite radar systems (InSAR) recorded ground swelling, which indicated that magma was moving into shallow levels beneath the volcano (a process called “inflation”).

Since last September’s announcement, and, in fact, since mid-2014, when Mauna Loa activity first began to increase, not only have the rates of earthquake and surface deformation waxed and waned, the locations of earthquakes and inflation have shifted as well. Far fewer earthquakes have been occurring beneath the summit caldera, while rates of earthquakes in the upper SWRZ have increased. Concurrently, inflation beneath the caldera has slowed significantly, but picked up in the upper SWRZ.

One of the many valuable lessons that Kīlauea and Mauna Loa have taught us is that it’s important to use all our volcano monitoring “keys”—geophysical, geological, and geochemical—to help unlock the subsurface processes that cause changing activity. To continue the analogy, volcanologists have also found that, unfortunately, not all volcanoes are “keyed” alike—indicators of activity on one volcano do not always apply to another one.

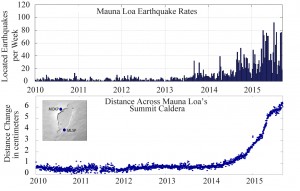

TOP: Mauna Loa weekly earthquake rates between 2010 and September 17, 2015. Blue bars indicate the number of earthquakes that were located by the USGS Hawaiian Volcano Observatory seismic network. Earthquakes of all magnitudes are plotted. Subtle increases in earthquake rates started in mid-2013, while more obvious changes in rates started in 2014. BOTTOM: Change in distance across Mauna Loa's summit caldera between 2010 and September 17, 2015. Blue dots indicate the relative distance between two stations that span the summit caldera of Mauna Loa, shown in the map on the upper left. Sustained extension across the caldera started in mid-2014. This extension is one of the indicators of magma infilling a complex reservoir system beneath the summit and upper Southwest Rift Zone.

TOP: Mauna Loa weekly earthquake rates between 2010 and September 17, 2015.
BOTTOM: Change in distance across Mauna Loa’s summit caldera between 2010 and September 17, 2015.

Mauna Loa’s renewed activity, especially the recent earthquake and deformation changes, has HVO scientists polishing old keys while developing new ones that were technologically inconceivable prior to the volcano’s most recent eruption in 1984.

For example, HVO’s seismic network is considerably expanded (more seismometers with more sensitive sensors) and more robust to survive the harsh Mauna Loa environment, especially at high altitude. Continuously-recording GPS instruments and other satellite-based systems produce frequent and widespread measurements of ground surface movement. And, newly-installed visible and infrared (thermal) webcams track surface changes around the clock.

Another key currently under enhancement is gas geochemistry.

Many kilometers (miles) deep within a volcano, gases, including carbon dioxide (CO2), sulfur dioxide (SO2), and water, are trapped in the magma by the intense pressure, which keeps the gases dissolved. Because magma is hotter, and thus more buoyant, than the surrounding rock, it rises towards the surface. As this happens, pressure on the magma decreases because there is less material on top of it. This decrease in pressure, especially at the shallow depths of just a few kilometers (a mile or so) below a volcano’s summit, allows some of the trapped gas to escape. These released gases are hot and buoyant and can reach the ground surface well before their host magma.

Volcanic gas studies take advantage of pre-eruptive gas release to provide clues about what might be happening at depth. HVO has one gas monitoring station in Mauna Loa’s summit caldera that continuously measures the concentrations of CO2 and SO2, as well as temperature, at the gas vent.

Over the next couple of months we hope to add another continuous gas monitoring site on Mauna Loa’s SWRZ, not far from where the earthquakes and inflation are currently concentrated.

Another exciting volcanic gas geochemistry development involves close cooperation with scientists from NOAA’s Mauna Loa Observatory (MLO), located on the volcano’s north flank at an elevation of 3380 m (11,100 ft).

Some years back, MLO scientists noted that, in addition to being able to track the steady rise in background atmospheric CO2, they were, under certain wind conditions, able to measure CO2 emissions from the volcano. In the current venture, HVO, Alaska Volcano Observatory, and MLO scientists will be monitoring Mauna Loa’s volcanic CO2 emissions more carefully alongside MLO’s world-class, continuous atmospheric data set.

As Hawaiʻi Island’s population grows, more people and infrastructure are potentially in harm’s way now than during past eruptions of Mauna Loa. At the same time, however, volcanologists and public safety officials have learned valuable lessons by studying eruptions around the globe. This increased knowledge, plus advancements in the volcano monitoring keys we use to detect and investigate restlessness, can help communities be safer during future eruptions.
