Volcano Watch: Remotely measuring the temperature of Kīlauea lava

(Volcano Watch is a weekly article written by scientists at the U.S. Geological Survey’s Hawaiian Volcano Observatory.)

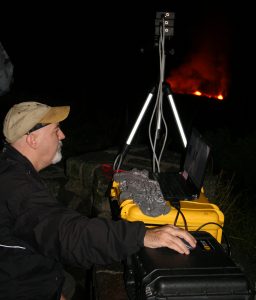

A U.S. Geological Survey scientist used a custom-built, high-speed camera to remotely measure the temperature of spattering lava on the surface of Kīlauea Volcano’s summit lava lake (background). This particular experiment, conducted from the Jaggar Museum overlook in Hawaiʻi Volcanoes National Park on December 10, 2016, was part of a NASA-funded research project. USGS photo.

A U.S. Geological Survey scientist used a custom-built, high-speed camera to remotely measure the temperature of spattering lava on the surface of Kīlauea Volcano’s summit lava lake (background). This particular experiment, conducted from the Jaggar Museum overlook in Hawaiʻi Volcanoes National Park on December 10, 2016, was part of a NASA-funded research project. USGS photo.

If something is hot enough, it emits light in wavelengths that are visible to the human eye. This is called incandescence. If you’ve ever seen the red-, orange-, or yellow-ish glow from Kīlauea Volcano’s lava lake or an active lava flow, then you have observed incandescence.

Color is a rough indication of the temperature of hot materials, including lava. The human eye is remarkably sensitive to subtle color differences, and, with some practice, you can roughly estimate the temperature range of an object based on the color of its incandescent glow.

For example, yellow indicates a temperature of about 1000–1200 degrees Celsius (1832–2192 degrees Fahrenheit). Orange indicates a slightly cooler temperature of about 800–1000 degrees Celsius (1472–1832 degrees Fahrenheit), while red is even cooler, about 600–800 degrees Celsius (1112–1472 degrees Fahrenheit).

A remote sensing instrument that can determine the temperature of distant objects based on their incandescent color is called an optical pyrometer. “Remote sensing” refers to the use of imaging technology that acts as extensions of our eyes, allowing us to see the world in a new light and from different perspectives.

One of the most important characteristics of active lava is its eruption temperature. This information can help determine the lava’s composition and flow characteristics. It also provides important hints about the magma’s plumbing system, source region, and supply rate, and how far the lava might travel.

The outer surface of erupting lava cools incredibly quickly when it is first exposed to air—hundreds of degrees per second. Hence, remotely measuring the eruption temperature is an attempt to record something that is visible for only a fraction of a second. Previous work on Kīlauea and other active volcanoes has demonstrated that existing methods of remotely determining lava flow temperatures can have hundreds of degrees of uncertainty.

In early December 2016, scientists from the U.S. Geological Survey and NASA visited Kīlauea Volcano to experiment with a portable, ground-based camera system for use as an optical imaging pyrometer. The custom-built, high-speed camera can acquire images at more than 50 frames per second in three wavelengths (green, red, and near-infrared). It was calibrated by collecting images of a high-temperature calibration oven.

During their field work, the USGS and NASA scientists collected thousands of images of active lava from Kīlauea’s two ongoing eruptions. This included breakouts along the 61g lava flow, as well as spattering lava along the edges of the summit lava lake, which was visible from the Jaggar Museum overlook in Hawai‘i Volcanoes National Park.

The eruption temperature of Kīlauea lava is well-known— up to about 1170 degrees Celsius (2140 degrees Fahrenheit) at the summit and around 1140 degrees Celsius (2084 degrees Fahrenheit) on the East Rift Zone. Because of this, the volcano is the perfect place to determine how these camera data can be used to retrieve reliable temperatures from the hottest parts of active flows and lava lakes.

The results of this study will establish the validity of a generic data processing method that could be applied to other satellite, airborne, and ground-based remote sensing data sets. The ultimate goal of this NASA-funded research is to design an instrument capable of reliably measuring the temperature of active lava on Jupiter’s moon, Io, the only other object in our solar system known to have active, high-temperature volcanism.

Kīlauea Volcano, on the Island of Hawaiʻi, is one of the best places in the world for scientists to conduct their remote sensing research, which is important for future NASA missions to the outer reaches of our solar system.
